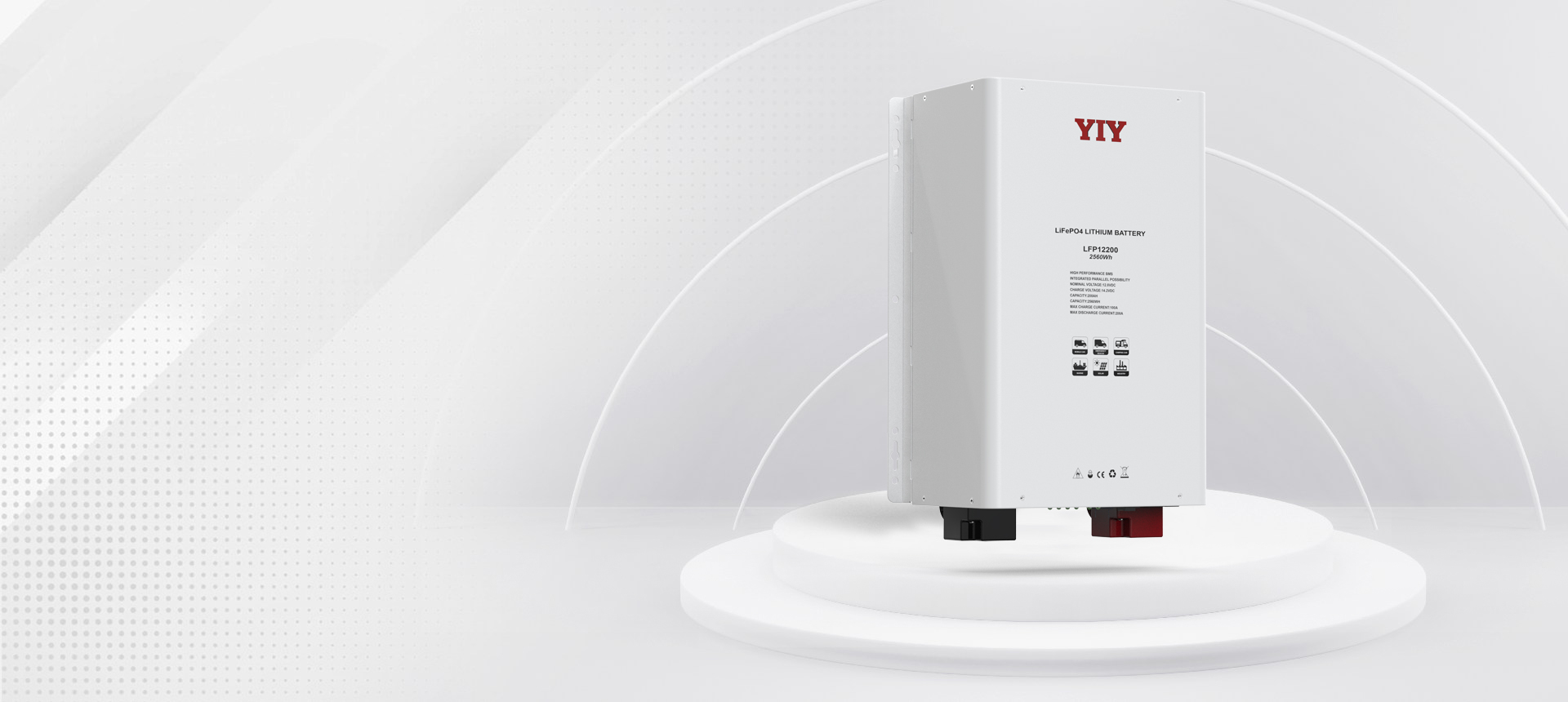

8PCS 105AH LiFePO4 cells
12.8Vdc / 25.6Vdc 2.56KWH rated capacity.
Long cycle life 4000 times.
IP31 Protection.
Unique automatic calibration active banlancing technology BMS syestem.
Relay type BMS, can withstand up to 200A current
Standard CAN &RS485 communication port
Technical Parameters
| LFP 2.56 LiFePO4 Battery Pack | ||
| Specificat ion | ||
| Model | LFP12200M | LFP24100M |
| Rated Voltage | 12.8V | 25.6V |
| Rated Capacit | 200Ah | 100Ah |
| Rated Energy | 2.56KWH | |
| Cell Configuration | 4S2P | 8S1P |
| Battery Cell | 3.2V100AH 8PCS | |
| LFP 2.56 LiFePO4 Battery Pack | ||
| Specificat ion | ||
| Model | LFP12200M | LFP24100M |
| Rated Voltage | 12.8V | 25.6V |
| Rated Capacit | 200Ah | 100Ah |
| Rated Energy | 2.56KWH | |
| Cell Configuration | 4S2P | 8S1P |
| Battery Cell | 3.2V100AH 8PCS | |
| Standard Charge | ||
| Operation temperature range ◎charging | 0~60℃ | |
| Rated charge voltage | 13.8±0.1V | 27.6±0.2V |
| Max charge voltage | 14.2±0.1V | 28.4±0.2V |
| Overcharge protection | 14.6±0.1V | 29.2±0.2V |
| Allowed MAX charge current | 220A30s | 110A 30s |
| Peak charge current | 240A 5s | 120A 5s |
| Rated charge current | 200A | 100A |
| Recommend charge current | <200A | <100A |
| Standard Discharge | ||
| Operation temperature range @dis charging | -35~60℃ | |
| Output Voltage Range | 10-14Vdc | 20~28Vdc |
| Recommend Working Range | 11.5~13.5Vdc | 23~27Vdc |
| Discharge Cut-off voltage | 10V | 20V |
| Allowed MAX dis charge current | 220A30s | 110A 30s |
| Peak discharge current | 240A 5s | 120A 5s |
| Rated discharge current | 200A | 100A |
| Recommend discharge current | <200A | <100A |
| Mechanical Characteristics | ||
| Dimension HW*D | 450*260*185mm | |
| Shipping H*W*D | 500*360*315mm | |
| Weight(N.W.) | 26KG | |
| Weight(G.W.) | 29KG | |
| Communication | ||
| RS485 | For LCD remote | |
| CAN | PC control and monitor | |
| Storage and Transportation Requirements | ||
| Storage Temperature | Less than 1 month | -20~35℃ |
| Less than 6 month | -10-30°℃ | |
| Storage Humidity | 45~75%RH | |
| SOC | Storage | 60~75%SOC |
| Transport | 45~55%SOC | |
Our energy storage systems can be tailored to meet the exact requirements of your project and the applications it will be used for. Whatever your needs, we can give you a reliable, bankable battery asset. Calculation is an estimate based on typical use of electrical appliances Customer experience will vary based on location and actual usage. Some appliances may not be compatible with storage system. Pls consult specilist or YIY team before installation to determine which appliances and devices are compatible.
*Maximum single PV charging power:50KW
