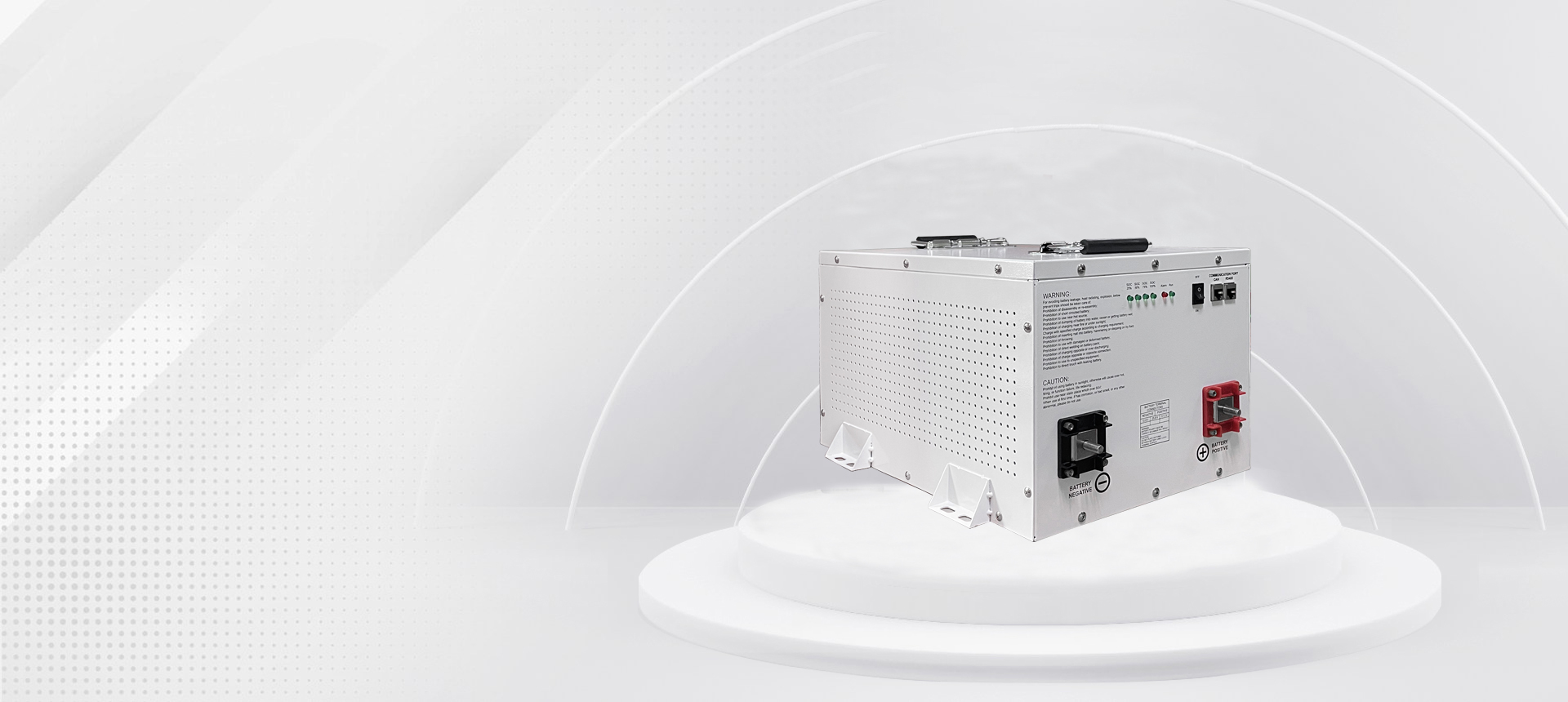

LiFePO4 Battery Pack

5.12kWh

Product Features
High performance
  • 16PCS 105AH LiFePO4 cells

  • 12.8Vdc / 25.6Vdc / 51.2Vdc  5.12KWH rated capacity.

  •  Long cycle life 4000 times.

Safe and stable
  • IP31 Protection.

  • Unique automatic calibration active banlancing technology BMS syestem.

  • Relay type BMS, can withstand up to 200A current

Flexible application
  • Standard CAN &RS485 communication port

Technical Parameters

LFP-RV   5.12kWh   LiFePO4   Battery   Pack
Specifications
ModelLFP12400RVLFP24200RVLFP48100RV
Rated Voltage12.8V25.6V51.2V
Rated Capacity400Ah200Ah100Ah
Rated Energy5.12KWH
Cell Configuration4S4P8S2P16S1P
Battery Cell3.2V100AH 16PCS


View detailed parameter table
LFP-RV   5.12kWh   LiFePO4   Battery   Pack
Specifications
ModelLFP12400RVLFP24200RVLFP48100RV
Rated Voltage12.8V25.6V51.2V
Rated Capacity400Ah200Ah100Ah
Rated Energy5.12KWH
Cell Configuration4S4P8S2P16S1P
Battery Cell3.2V100AH 16PCS
Standard Charge
Operation temperature range
@charging
0~60℃
Rated charge voltage13.8±0.1V27.6±0.2V55.2±0.4V
Max charge voltage14.2±0.1V28.4±0.2V56.8±0.4V
Overcharge protection14.6±0.1V29.2±0.2V58.4±0.4V
Allowed MAX charge current220A 30s110A 30s55A 30s
Peak charge curent240A 5s120A 5s60A 5s
Rated charge current200A100A100A
Recommend charge current<200A<100A<50A
Standard Discharge
Operation  temperature  range
@discharging
-35~60℃
Output Voltage Range10-14Vdc20~28Vdc40~56Vdc
Recommend Working Range11.5~13.5Vdc23~27Vdc46~54Vdc
Discharge Cut-off voltage10V20V40V
Allowed MAX discharge current440A 30s220A 30s110A 30s
Peak discharge current480A 5s240A 5s120A 5s
Rated discharge current400A200A100A
Recommend discharge curent<400A<200A<100A
Mechanical Characteristics
Dimension H*W*D450*320*240mm
Shipping H*W*D550*420*360mm
Weight(N.W.)47KG
Weight(G.W.)50KG
Communication
RS485For LCD remote
CANPC control and monitor
Storage and Transportation Requirements
Storage TemperatureLess than 1 month20~35℃
Less than 6 month-10-30℃
Storage Humidity45~75%RH
SOCStorage60~75%SOC
Transport45~55%SOC
