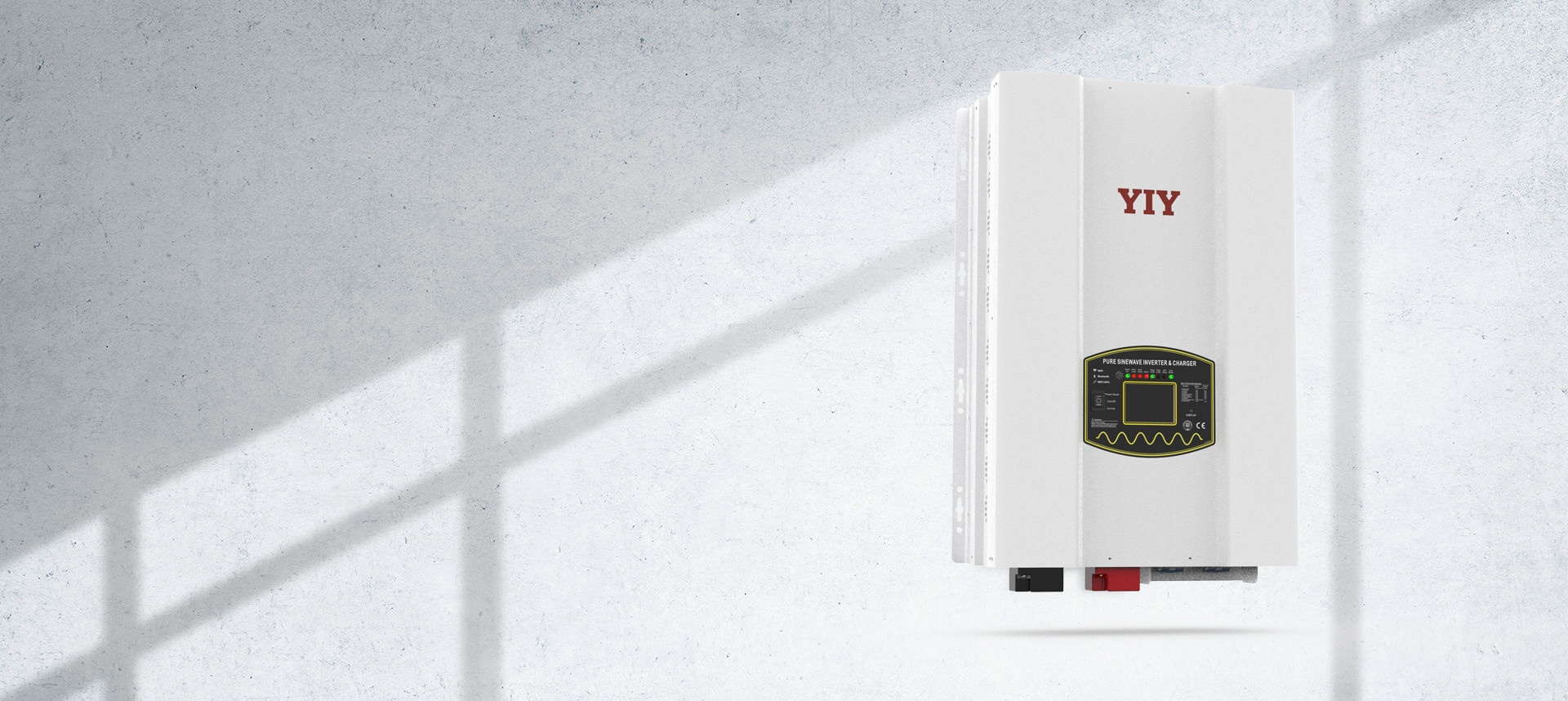

High Output Capacity up to 18 KW,single phase.
Ultra Low THD,Typically 7%Under Full Linear Load (battery low)
≥3KW,120/240VAC split phase.
300% Surge Rating (20Secs)
Auto Gen Start Function.
MPPT Solar Charger Controller Available.
Optional BTS available.
Optional GFCI available.
Technical Parameters
| Inverter Output | ||||||||||||
| Model | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW | 15.0KW | 18.0KW |
| Continuous Output Power | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW | 15.0KW | 18.0KW |
| Surge Rating (20Secs) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW | 45.0KW | 54.0KW |
| Output Waveform | Pure Sine vave/Same as input (Bypass Mode) | |||||||||||
| Nominal Efficiency | >88% (Peak) | |||||||||||
| Inverter Output | ||||||||||||
| Model | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW | 15.0KW | 18.0KW |
| Continuous Output Power | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW | 15.0KW | 18.0KW |
| Surge Rating (20Secs) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW | 45.0KW | 54.0KW |
| Output Waveform | Pure Sine vave/Same as input (Bypass Mode) | |||||||||||
| Nominal Efficiency | >88% (Peak) | |||||||||||
| Inverter Output | |||||||||||||
| Model | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW | 15.0KW | 18.0KW | |
| Continuous Output Power | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW | 15.0KW | 18.0KW | |
| Surge Rating (20Secs) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW | 45.0KW | 54.0KW | |
| Output Waveform | Pure Sine vave/Same as input (Bypass Mode) | ||||||||||||
| Nominal Efficiency | >88% (Peak) | ||||||||||||
| Line Mode Efficiency | >95% | ||||||||||||
| Power Factor | 0.9-1.0 | ||||||||||||
| Nominal Output Voltage rms | 100-110-120Vac/ 220-230-240Vac | ||||||||||||
| Output Voltage Regulation | ±10%RMS | ||||||||||||
| Output Frequency | 50Hz± 0.3Hz/60Hz± 0.3Hz | ||||||||||||
| Short Circuit Protection | Yes( 1 sec after fault) | ||||||||||||
| Typical transfer Time | 10ms (Max) | ||||||||||||
| THD | < 3% (Rated battery level, rated full linear load) | ||||||||||||
| DC Input | |||||||||||||
| Nominal Input Voltage | 12.0Vdc/24.0Vdc | 12.0Vdc/24.0Vdc/48.0Vdc | 24.0Vdc 48.0Vdc | 24.0Vdc/48.0Vdc 96.0Vdc | 48.0Vdc/96.0Vdc | ||||||||
| Minimum Start Voltage | 10.0Vdc/ 10.5Vdc for 12Vdc Mode | *2 for 24Vdc/*4 for 48Vdc/*8 for 96Vdc, | |||||||||||
| Low Battery Alarm | 10.5Vdc/ 11.0Vdc for 12Vdc Mode | *2 for 24Vdc/*4 for 48Vdc/*8 for 96Vdc, | |||||||||||
| Low Batteiy Trip | 10.0Vdc/ 10.5Vdcfor 12VdcMode | *2 for 24Vdc/*4 for 48Vdc/*8 for 96Vdc, | |||||||||||
| High Voltage Alarm | 16.0Vdcfor12Vdc Mode | *2 for 24Vdc/*4 for 48Vdc/*8 for 96Vdc, | |||||||||||
| Low Battery Voltage Recover | 15.5Vdc for 12Vdc Mode | *2 for 24Vdc/*4 for 48Vdc/*8 for 96Vdc, | |||||||||||
| Idle Consumption-Search Mode | < 25W When Power Saver On. (Refer to Table ) | ||||||||||||
| Charge | |||||||||||||
| Output Voltage | Depends on battery type (Refer to Table 2.5.2) | ||||||||||||
| Charger Breaker Rating | 20A | 20A | 20A | 25A | 32A | 40A | 40A | 50A | 80A | 80A | 100A | 125A | |
| Max Charge Power Rate | 1/3 Rating Pover (Refer to Table 2.5.3) | ||||||||||||
| Battery Initial Voltage for start | 10-15.7Vdcfor12Vdc Mode | *2 for 24Vdc；4 for 48Vdc/8 for 96Vdc, | |||||||||||
| Over Charge Protection S.D. | 15.7Vdcfor12Vdc Mode | *2 for 24Vdc；4 for 48Vdc/8 for 96Vdc, | |||||||||||
| Selector | 15.7Vdcfor12Vdc Mode | Description | Fast Mode / VDC | Float Mode/VDC | |||||||||
| Selector | 0 | Charger Off | |||||||||||
| Selector | 1 | Gel USA | 14 | 13.7 | |||||||||
| Selector | 2 | AGM 1 | 14.1 | 13.4 | |||||||||
| Selector | 3 | Lithium | 13.8 | 13.6 | |||||||||
| Selector | 4 | Sealed Lead Acid | 14.4 | 13.6 | |||||||||
| Selector | 5 | Gel EURO | 14.4 | 13.8 | |||||||||
| Selector | 6 | Open Lead Acid | 14.8 | 13.8 | |||||||||
| Selector | 7 | UfePO4 | 14.0 | 13.8 | |||||||||
| Selector | 8 | De-sulphation | 15.5 (4 Hours then Off) | ||||||||||
| Selector | 9 | Classic LFP | 13.6 | 13.5 | |||||||||
| Selector | For 12Vdc Mode Series("2 for 24Vdc Mode/4 for 48Vdc Mode/8 for 96Vdc Mode) | ||||||||||||
| BTS | |||||||||||||
| Battery Temperature Sensor (Optional) | Yes ( Refer to the table) Variances in Charging Voltage & S.D Voltage Base on the Battery Temperature. | ||||||||||||
| Bypass & Protection | |||||||||||||
| Input Voltage Waveform | Sine vave (Grid or Generator) | ||||||||||||
| Nominal Voltage | 100-110-120Vac/ 220-230-240Vac | ||||||||||||
| Max Input AC Voltage | 150Vac For 120Vac LV Mode； 300Vac For 230Vac HV Mode: | ||||||||||||
| Nominal Input Frequency | 50Hzor60Hz | ||||||||||||
| Low Freq Trip | 47±0.3Hzfor 50Hz 57±0.3Hzfor 60Hz | ||||||||||||
| High Freq Trip | 55±0.3Hz for 50Hz. 65±0.3Hz for 60Hz | ||||||||||||
| Ov ertoad protection (SMPS Ioad) | Circuit Breaker | ||||||||||||
| Output Short Circuit Protection | Circuit Breaker | ||||||||||||
| By pass Breaker Rating | 20A | 20A | 20A | 25A | 32A | 40A | 40A | 50A | 80A | 80A | 100A | 125A | |
| Transfer SWitch Rating | 30AmpforUL&TUV | 40Ampfor UL | 80Amp for UL | 100AmpforUL | |||||||||
| Bypass Without Battery Connected | Yes (Optional) | ||||||||||||
| Max Bypass Current | 30Amp | 40 Amp | 80Amp | 80Amp | |||||||||
| Mechanical Specifications | |||||||||||||
| Mounting | Wall Mount | ||||||||||||
| Inverter Dimensions (L*WH) | 388*415*200mm | 488*4158*200mm | 588*415*200mm | 688*415*230mm | |||||||||
| Inverter Weight (Solar Chg) KG | 21+2.5 | 22+2.5 | 23+2.5 | 27+2.5 | 38+2.5 | 48+2.5 | 49+2.5 | 60+2.5 | 66+2.5 | 70+2.5 | 75+2.5 | 78+2.5 | |
| Shipping Dimensions(LWH) | 550*520'310mm | 650*520'310mm | 750*520*310mm | 850*520*350mm | |||||||||
| Shipping Weight (Solar Chg) KG | 23+2.5 | 24+2.5 | 25+2.5 | 29+2.5 | 40+2.5 | 50+2.5 | 51+2.5 | 62+2.5 | 68+2.5 | 72+2.5 | 78+2.5 | 81+2.5 | |
| Display | Status LEDs / Status LEDs+LCD | ||||||||||||
| Standard Warranty | 1 Years | ||||||||||||

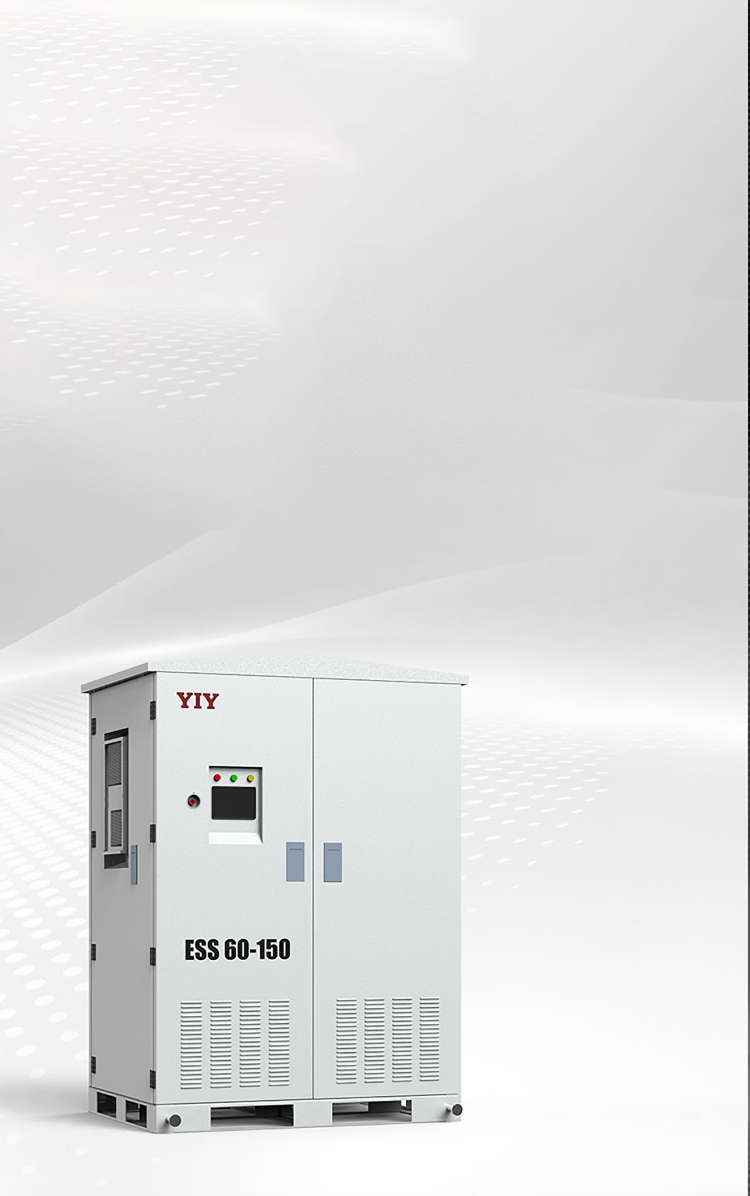

Our energy storage systems can be tailored to meet the exact requirements of your project and the applications it will be used for. Whatever your needs, we can give you a reliable, bankable battery asset. Calculation is an estimate based on typical use of electrical appliances Customer experience will vary based on location and actual usage. Some appliances may not be compatible with storage system. Pls consult specilist or YIY team before installation to determine which appliances and devices are compatible.
*Maximum single PV charging power:50KW
